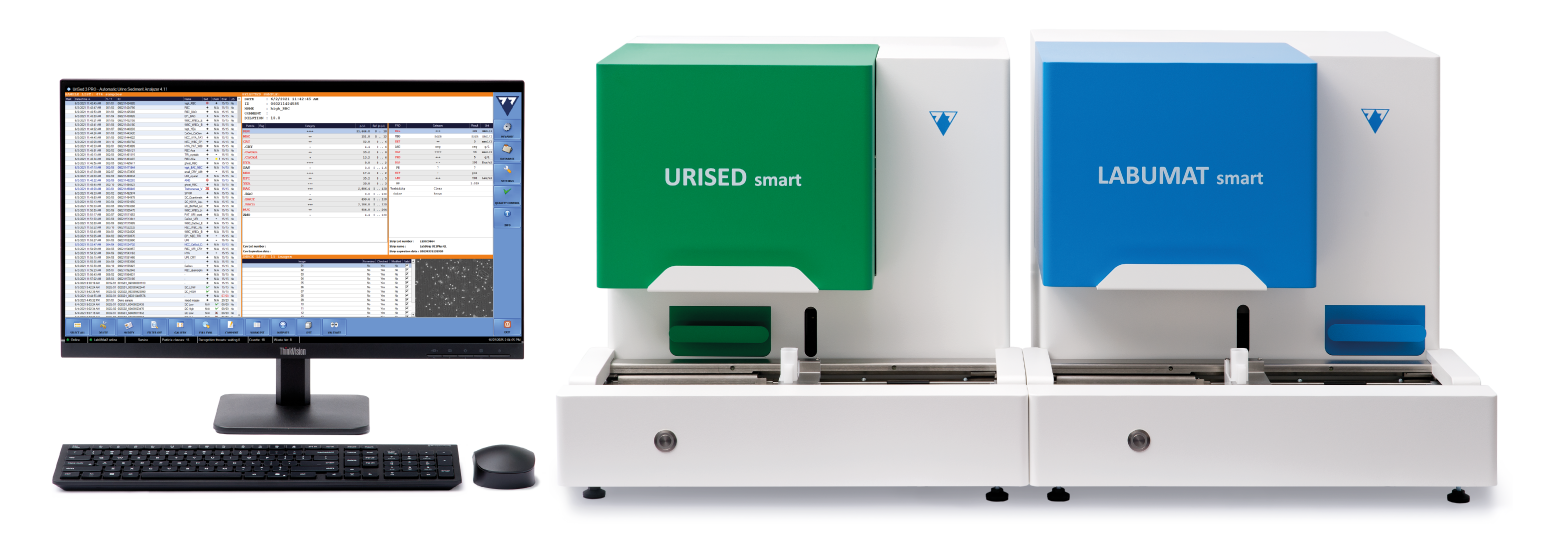

URISED smart microscopy urine sediment analyzer and LABUMAT smart urine chemistry analyzer connected together enable laboratories to have a completely automated urinalysis system. This integrated system provides an affordable, effective and reliable solution for urine analysis.
URISED smart and LABUMAT smart connected together is a fully automated urine laboratory system.
Urine sediment and chemistry analysis can perform up to 100 tests per hour in a single system. It handles the steps of sample forwarding, sample preparation, measurement process, result analysis, reporting and result review including microscopic images. The results of urine sediment and chemistry analysis are stored in a unified database.
URISED smart is a fully automated urine sediment analyzer which follows the traditional gold standard method by producing whole field of view microscopic images of urine sediment.
LABUMAT smart is a fully automated urine chemistry analyzer evaluating up to 12 chemical parameters with the available LabStrip urine test strips and 3 physical parameters. LABUMAT smart is a high quality and reliable instrument meeting the requirements of modern automated laboratories and providing walk-away operation.
URISED Smart Technical Specifications
Technology: URISED Technology: cuvette-based automated microscopy and image processing
Consumables: URISED Cuvette
Throughput: 100 tests/hour
Batch size: 50 test tubes - can be extended with additional 200 test tubes if optional input/output buffers are connected
Cuvette capacity: 50 cuvettes
Enhanced sedimentation: yes
Built-in microscope: yes
Images: 15 HPF-like images
Min. sample volume
normal mode: 2.0 mL, connected 3.0 mL
low volume mode: 1.0 mL, connected 2.0 mL
with pediatric tube: 0.8 mL, connected 1.0 mL
Memory: 10,000 results
Display: 24" monitor
Size: 516x581x466 mm (WxDxH) including rack handler
Instrument weight: 41 kg
Input: 100 - 250V AC / 50-60 Hz
Interfaces: USB, Type-C USB, RS232 serial port, PS2, DisplayPort, HDMI and DVI-D connection
Barcode reader: built-in barcode reader
LIS connectivity: LIS2-A2 or HL7
LABUMAT Smart Technical Specifications
Technology: reflectance photometer, 4 discrete wavelengths
Consumables: LabStrip U11 Plus GL; LabStrip U12 mALB/CREA
Throughput: 150 tests / hour
Batch size: 50 test tubes - can be extended with
additional 200 test tubes if optional
input/output buffers are connected
Test strip capacity: 150 test strips
Min. sample volume
normal mode: 2.0 mL, connected 3.0 mL
low volume mode: 1.0 mL, connected 2.0 mL
with pediatric tube: 0.8 mL, connected 1.0 mL
Memory: 10,000 results
Display: shared with URISED smart, 24" monitor
Size: 516x660x466 mm (WxDxH) including rack handler
Instrument weight: 45 kg
Input: 100 - 250V AC / 50-60 Hz
Interfaces: USB for connecting to URISED smart
All external connections are realized by URISED smart
Barcode reader: built-in barcode reader
URISED smart - LABUMAT smart_Brochure
